GYPTOP® Suspended Ceiling Flat T-gird

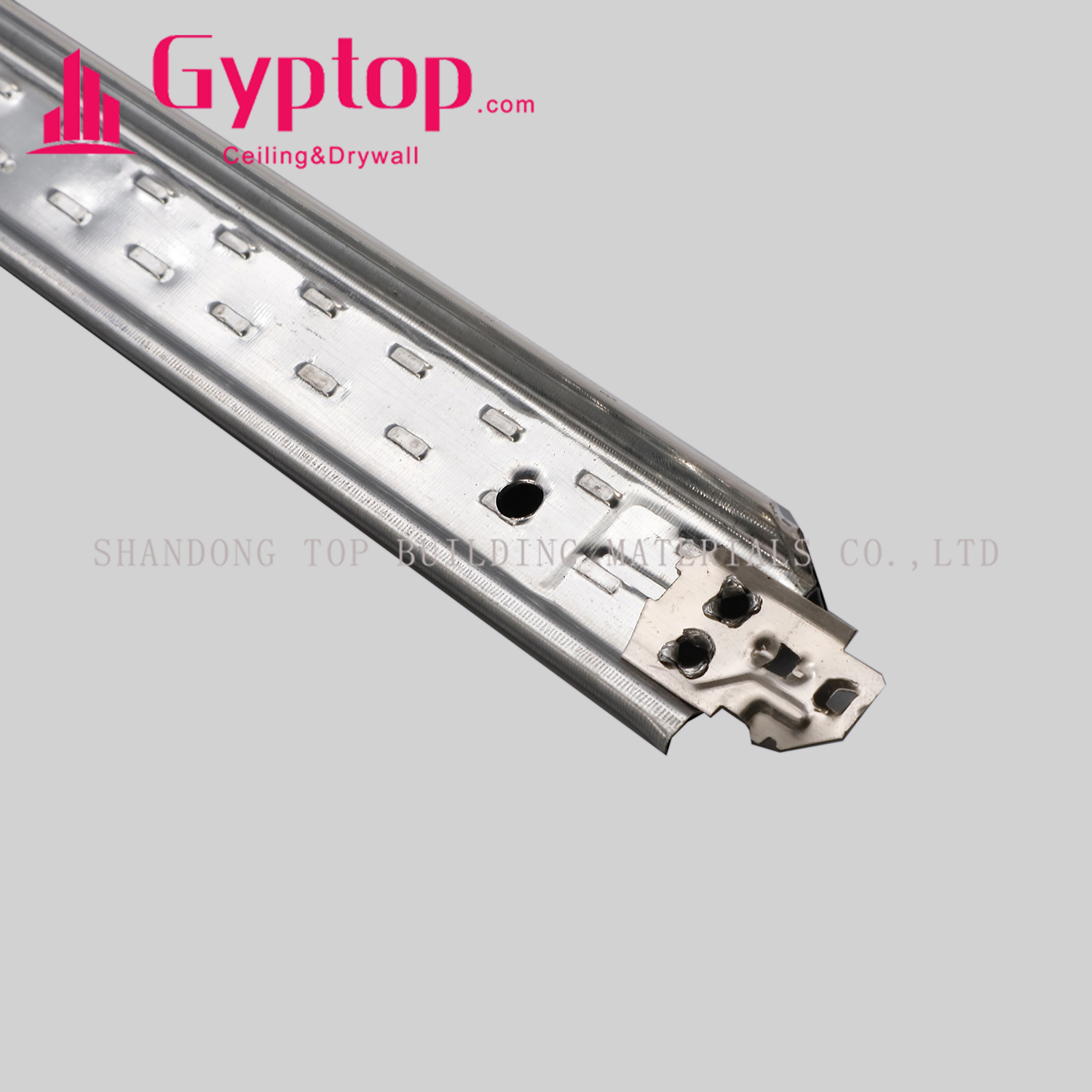

GYPTOP®suspended ceiling flat T-girds use domestic high-quality continuous hot-dip galvanized and painted steel strip as raw material, is a kind of high-quality product manufactured by applying advanced technology and rolling and cold bending process. It belongs to European and American lightweight metal framing system with simple structure and less accessories.

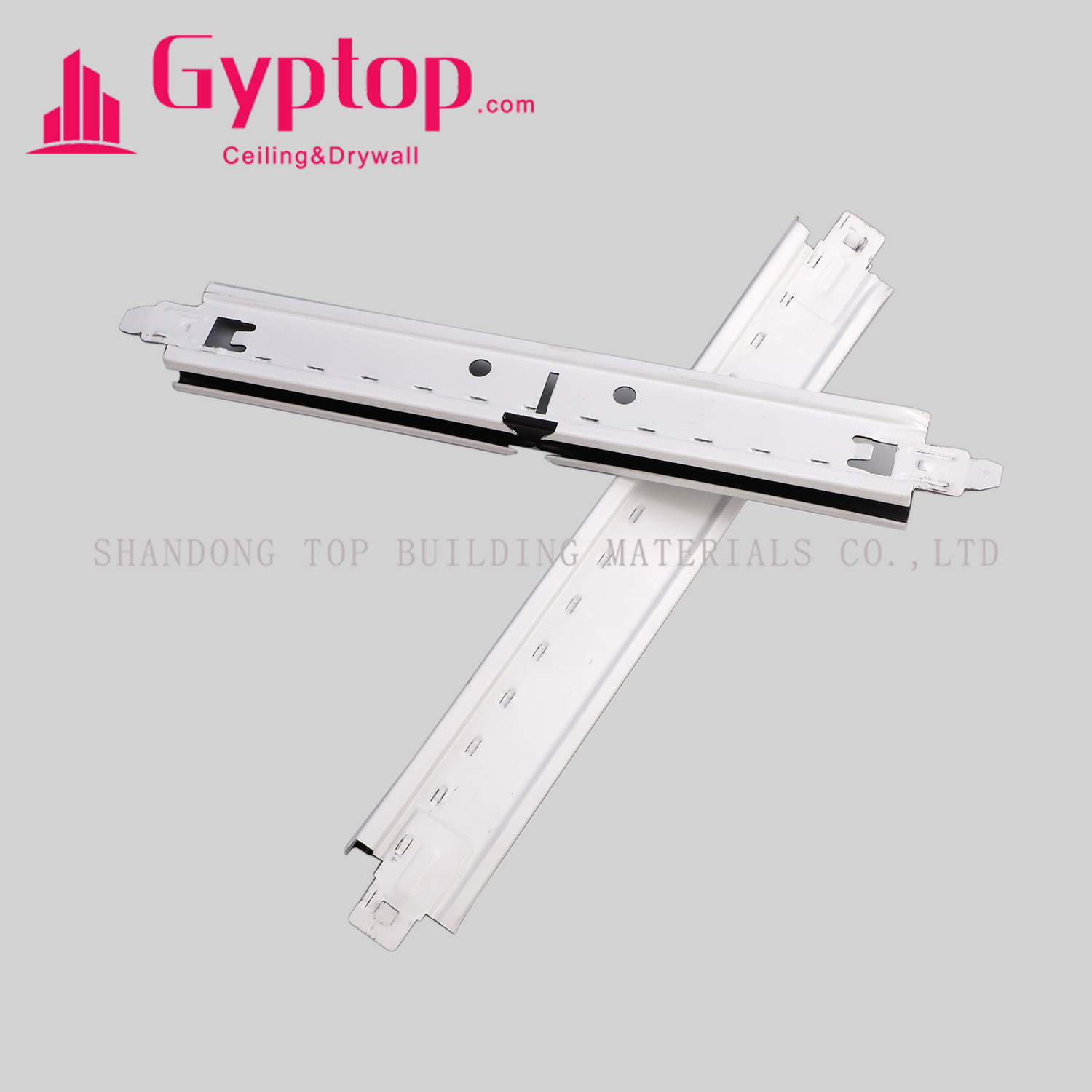

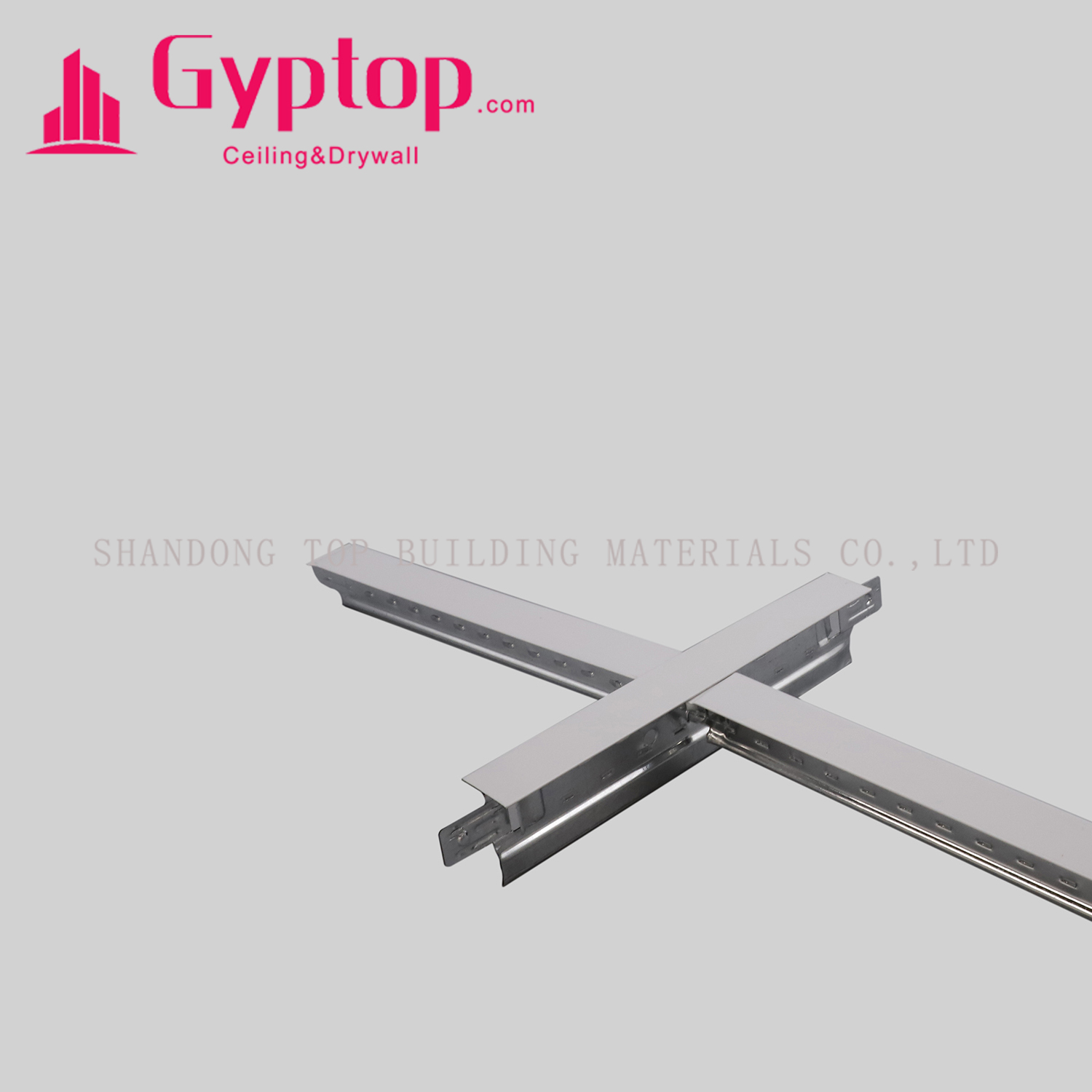

Tee bar exposed grid system is the economical framing suspension grid system used with metal and gypsum lay in tiles . Tee bar with the flange width 24mm and consist of main tee and cross tee in length 600mm and 1200mm.

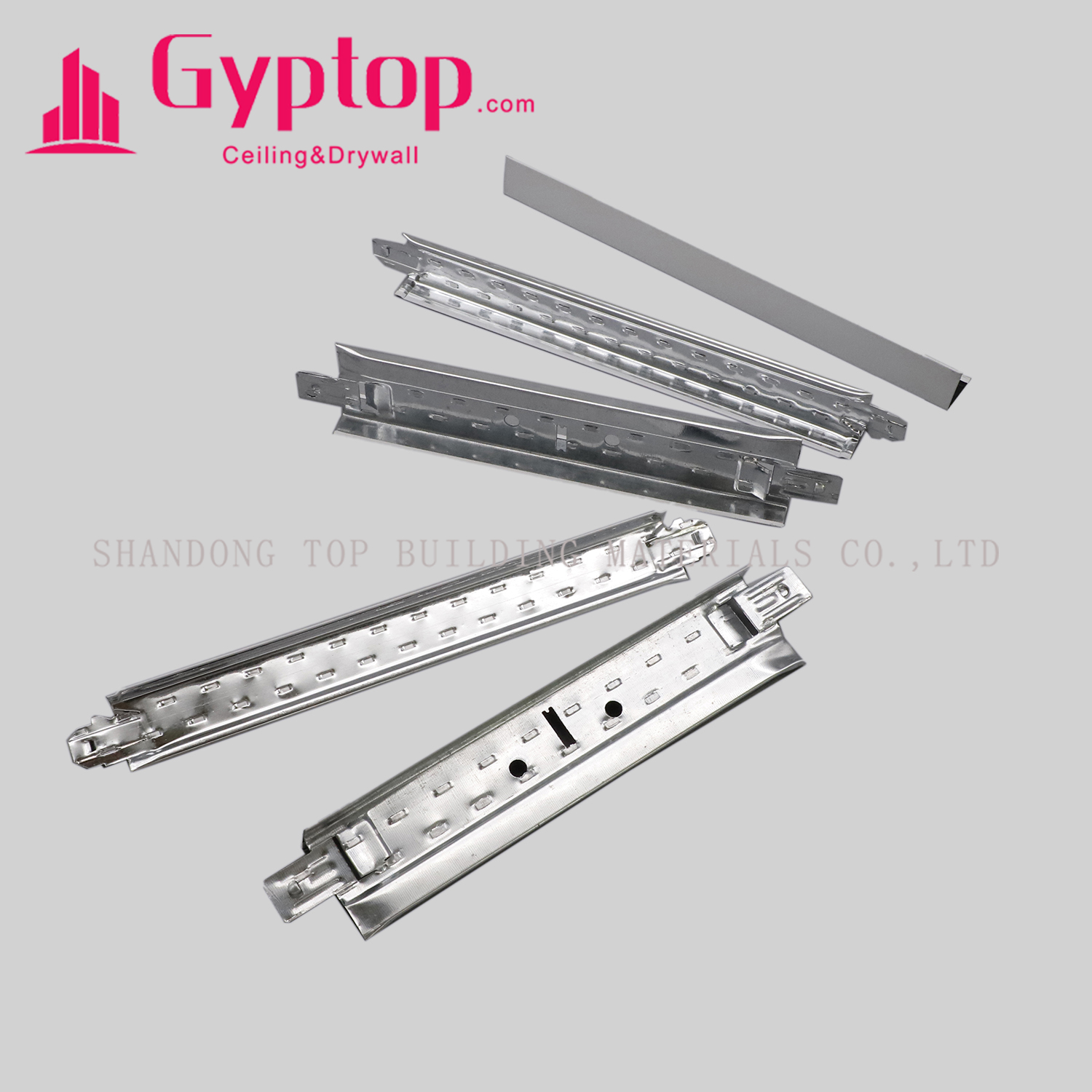

There is many types of t grid . Flat Tee Grid is the regular and common type to use .  Besides that, there is Flat groove Tee Grid, Groove T grid, Three-dimensional groove T bar avaible. Also , there are many colours to choose .

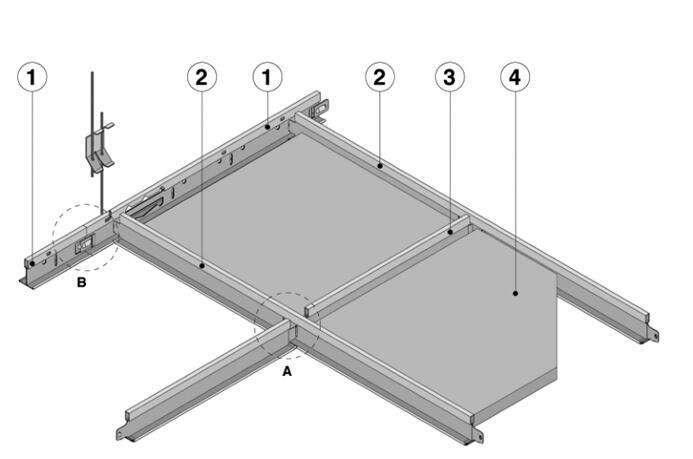

1.      Main Tee

2.      Cross Tee 1200mm

3.      Cross Tee 600mm

4.      Panel or tile

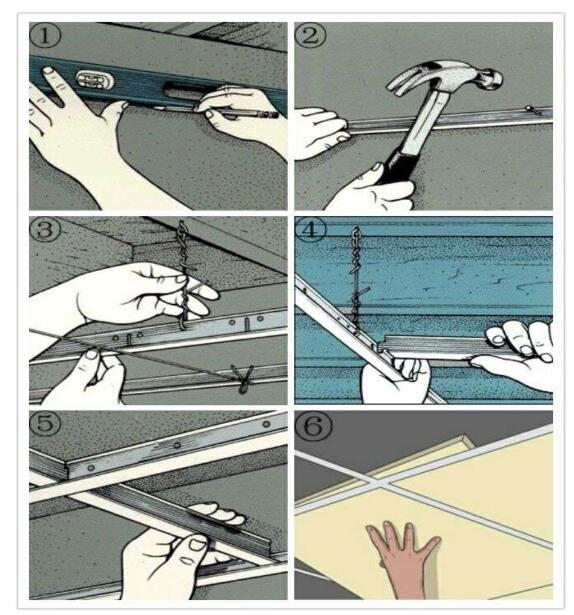

How to Install the Ceiling Grid system:

1.Determine the ceiling level around the room

2.Fix wall angle to the wall with nails or screws at 400mm intervals.

3.Gyptop® Main Tee at 1200mm intervals,measuring from the1 point,with galvanised steel suspension   wires at 1200mm. Wrap the 2.5mm strined suspension wire tightly at least 3 full turns around itself.

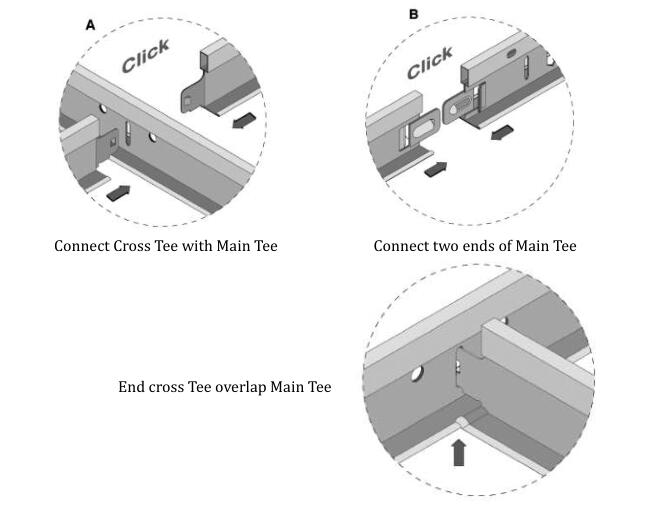

4.Insert 1200mm Gyptop® Ceiling Grid Cross Tee at right angles to the 3600mm Main Tees

5.Insert 600mm Gyptop® Ceiling  cross Grid Cross Tee at right angles to the 1200mm cross Tees

6.Lay-in the Gyptop® Gypsum board tiles

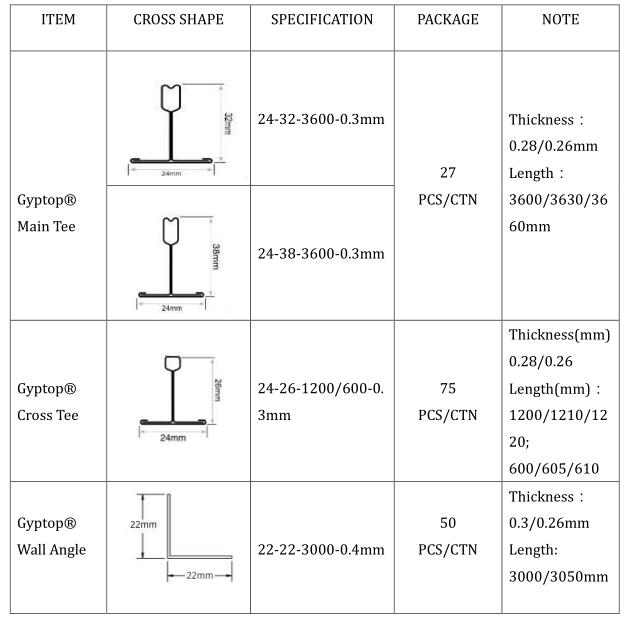

Specification：

Advantage:

1. Economical, easy to install, using less labor to complete the installation at miniumum time.

2.Interchangeability of main and corss tees berween systems,promotes lower inventory requirements and greater field flexibility.

3.The direct access lock feature in this section allows the system to be easily installed near the switch.

4. The system improves the flexibility of the design and maintains the normally designed load in a suspended tee system (see load table).

5.The cross beams provide a fully flush joint that is different between the power supply and the cross and ensures the rigidity of the fixture.

6.The online cross provides a true double lock action.
